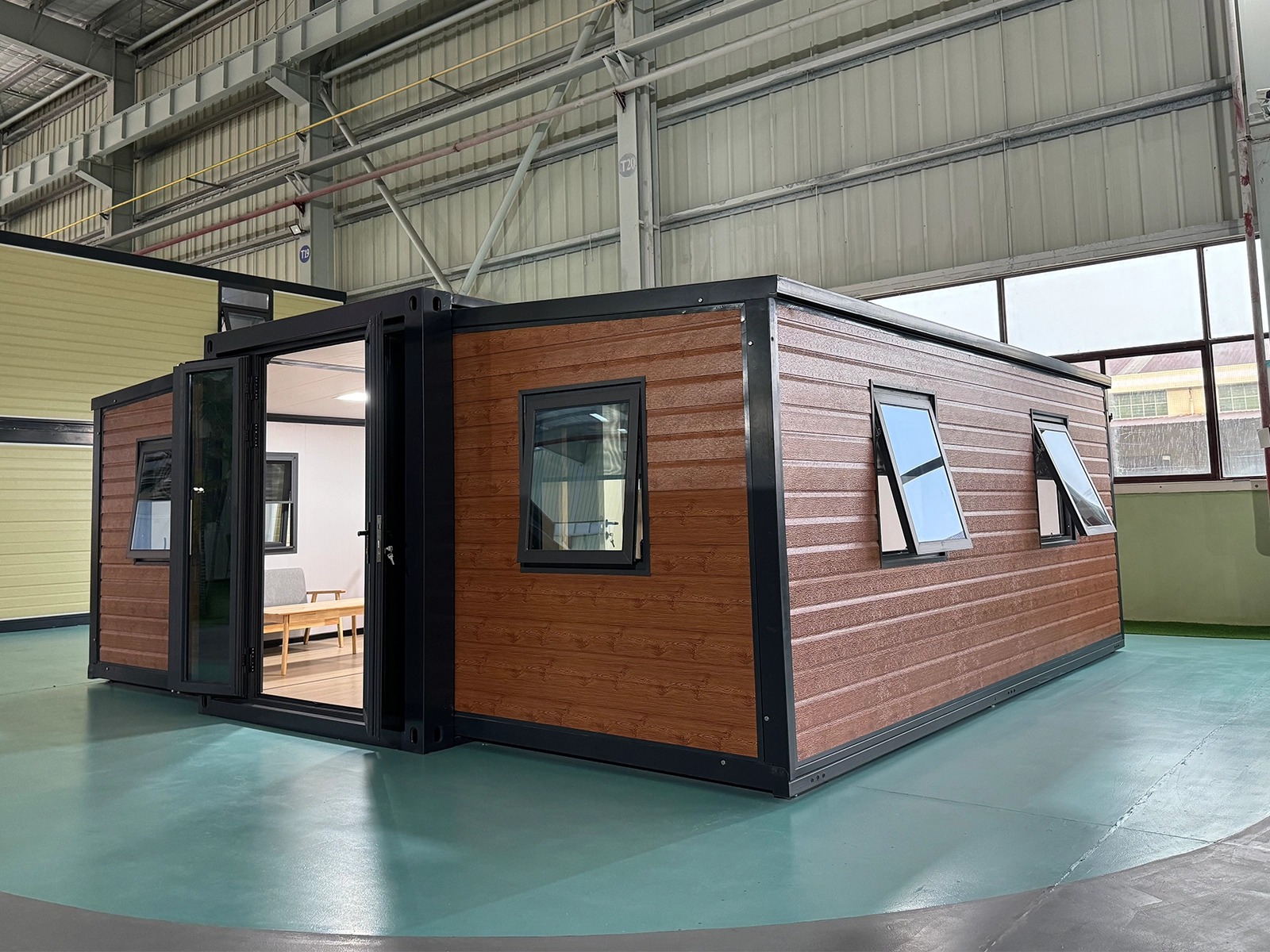

20ft Expandable Container House | Cabin & Office
Flexible and Durable Modular Solution for Residential and Commercial Use
The 20ft Expandable Container House is a compact and versatile modular unit designed for fast deployment. Ideal for residential, office, or tourism applications, it provides a flexible living and working space with high durability.
Products & Technology
A modern modular solution designed for both residential and commercial use. This expandable container house combines compact storage with spacious living, offering comfort, safety, and durability.

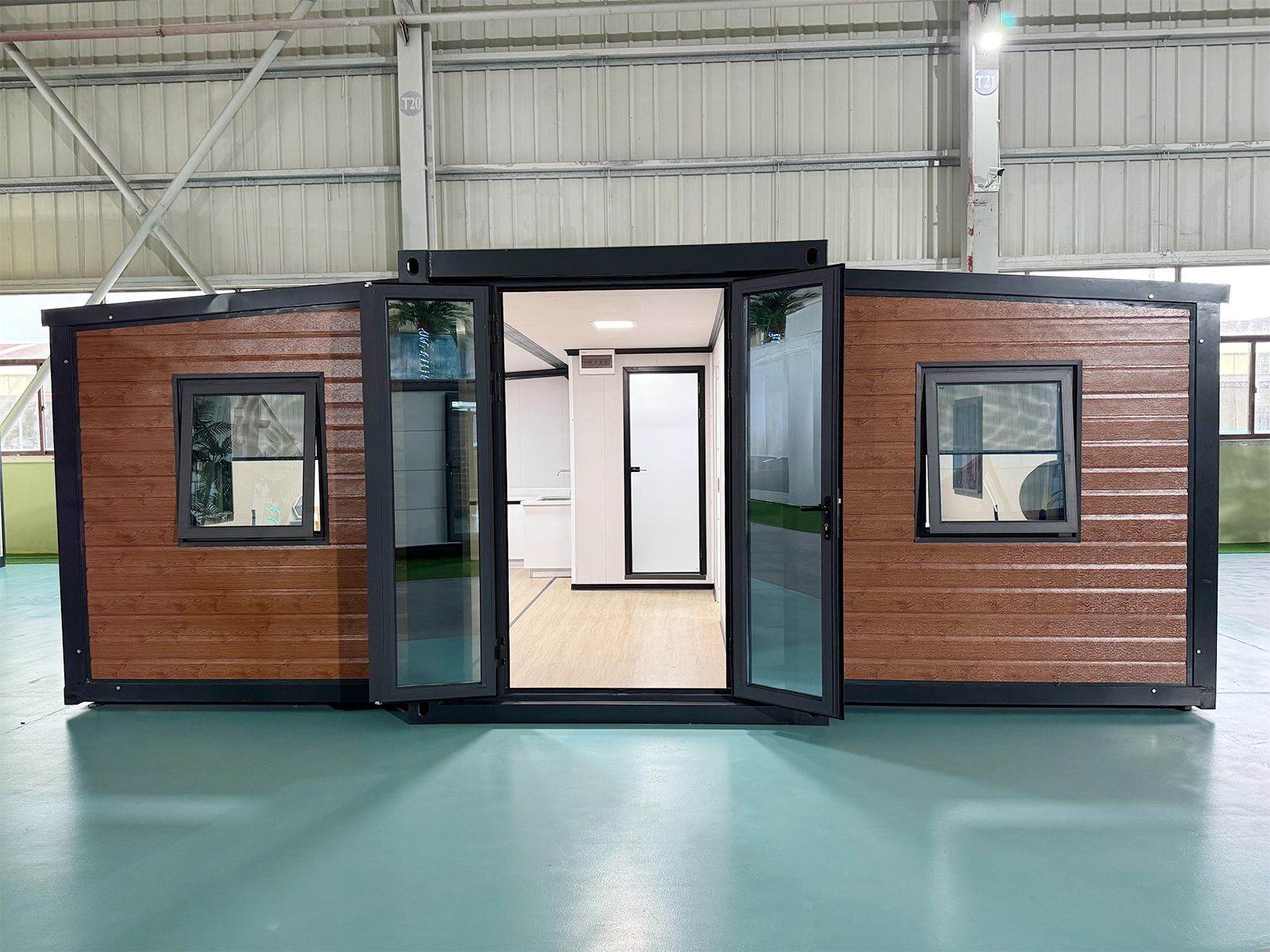

Flexible & Durable 20ft Expandable Container House
Key Features:
Dual-Wing Expandable Container House – Effortlessly increases usable space for living or office needs.
Durable Modular Housing Solution – Built with a strong steel frame and high-quality materials for long-term use.
Compact Folding Container House – Easy to transport, store, and relocate when needed.

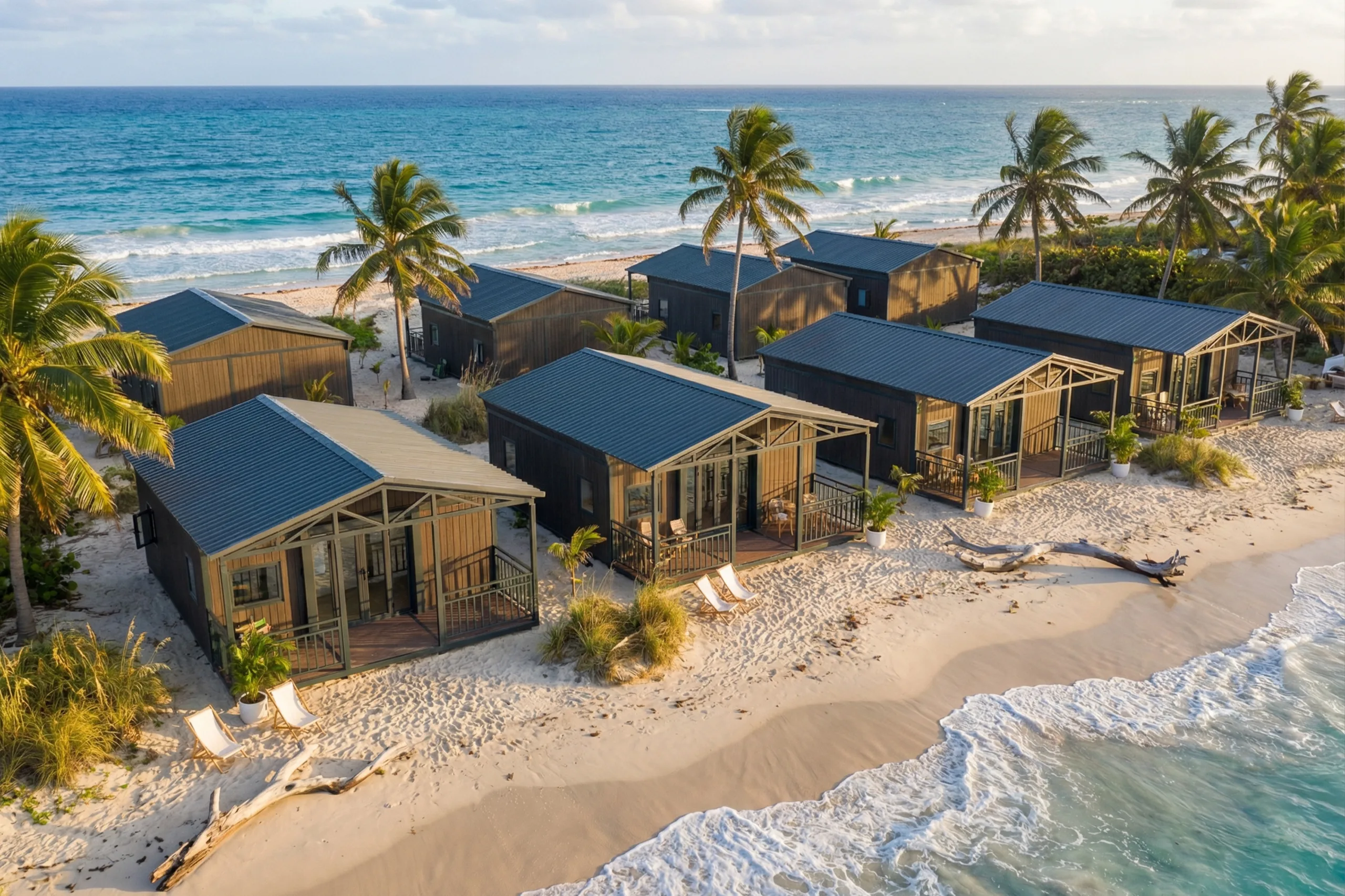

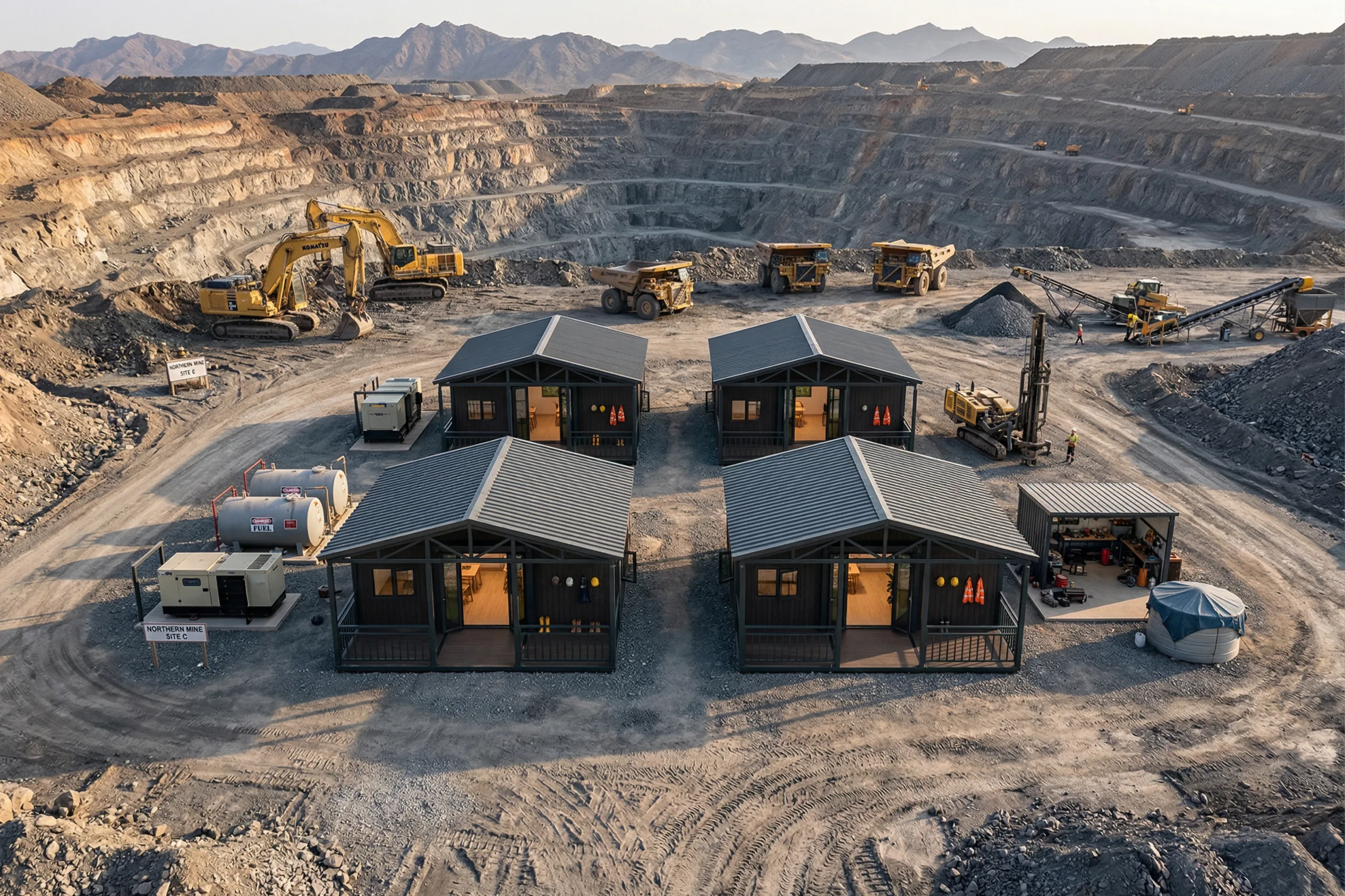

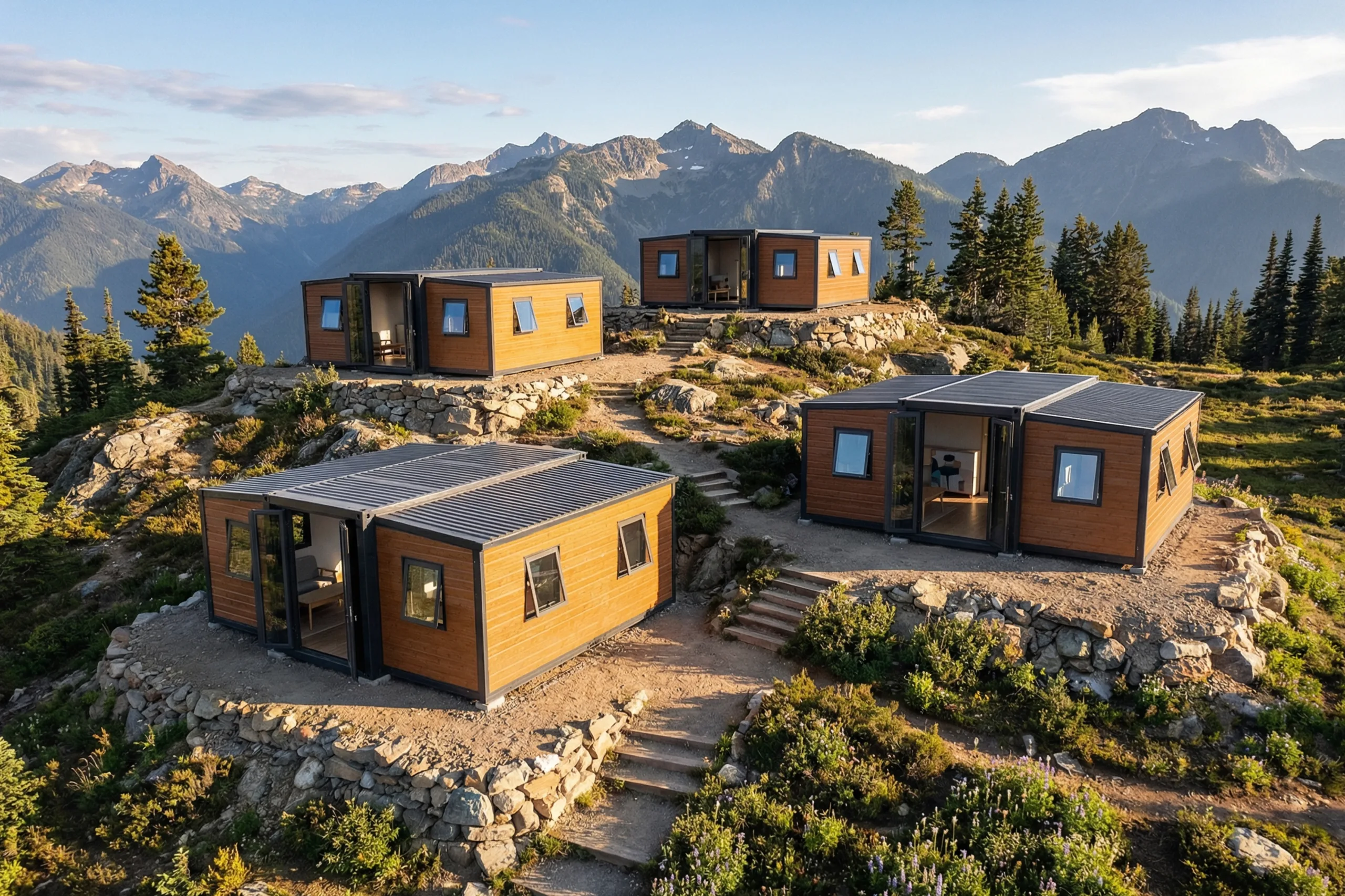

Versatile Applications – Ideal as a container home, site office, cabin, or pop-up shop.
Energy-Efficient Design – Equipped with a 12KW system to meet daily residential and commercial requirements.

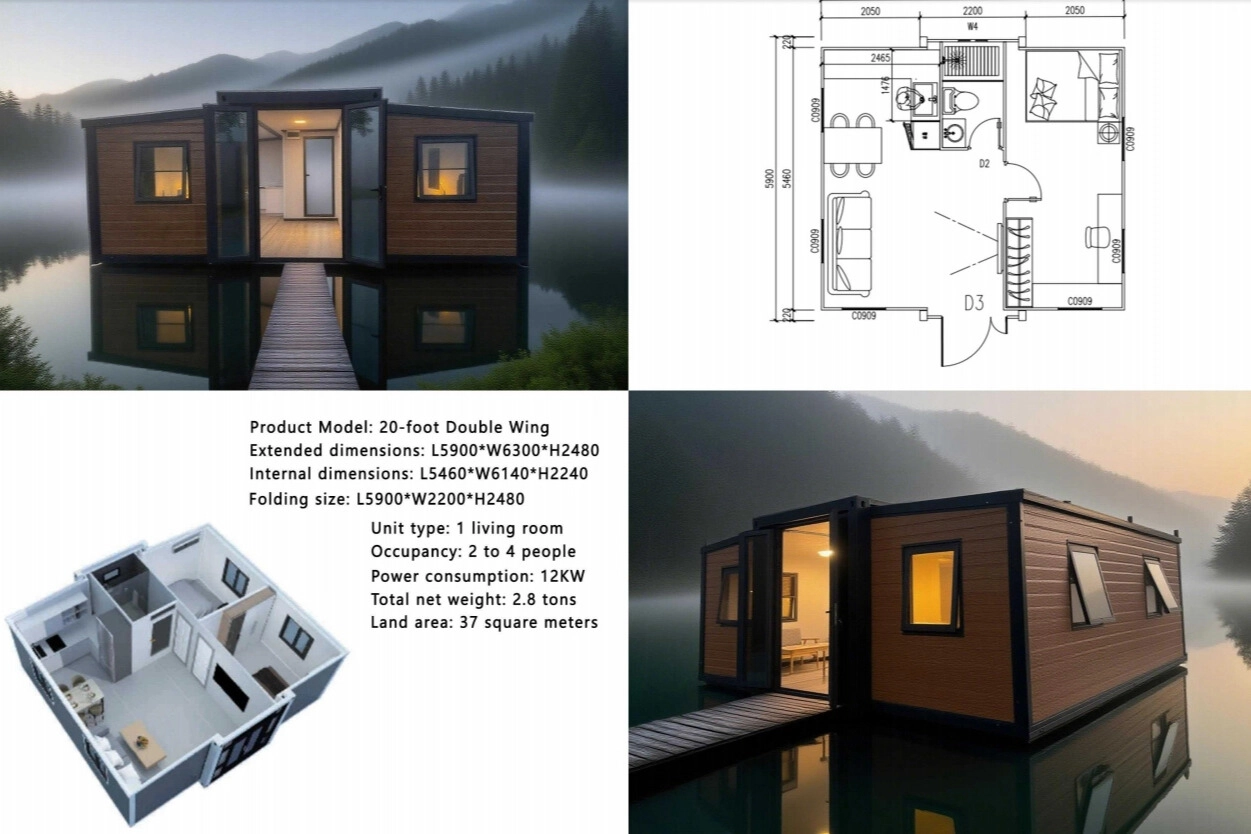

Expandable Container House Specifications
| Item | Specification |
|---|---|
| Main Frame & Dual-Wing Structure |
1. Top/side beams: 80×100×2.5mm galvanized square tube 2. Top end beam: galvanized bending 2.5mm 3. Top longitudinal secondary beam: 30×30×1.3mm galvanized square tube 4. Top horizontal secondary beam: 40×60×1.5mm galvanized square tube 5. Bottom side beam: 80×100×2.5mm galvanized square tube 6. Bottom end beam: galvanized bending 2.5mm 7. Bottom longitudinal secondary beam: 40×80×1.5mm galvanized square tube 8. Bottom horizontal secondary beam: 40×80×1.5mm galvanized square tube 9. 5mm galvanized lifting head: 210×150×160mm 10. Steel pillar: galvanized bending 2.5mm |
| Side Wing Frame |
1. Top frame: P40×80×1.5mm P-type tube 2. Side tube: 40×80×1.5mm galvanized square tube 3. Bottom frame: 60×80×2.0mm galvanized square tube 4. Folding hinge: 130mm galvanized hinge |
| Frame Coating | Electrostatic powder coating + anti-corrosion layer |
| Container Top |
1. External roof: 950-type, 50mm thick, double-sided 0.3mm galvanized sheet + corrugated sheet t0.45mm 2. Dual-wing top: 950-type, 50mm thick, double-sided 0.3mm galvanized composite sheet + corrugated sheet t0.45mm 3. Internal ceiling: 950-type, 50mm thick, double-sided 0.3mm galvanized sheet |
| Wall Panels |
1. Side & front/back walls: 950-type, 50mm thick, double-sided 0.3mm galvanized sheet 2. Interior partition walls: 950-type, 50mm thick, double-sided 0.3mm galvanized sheet |
| Floor |
1. Main frame: 18mm fireproof cement fiberboard 2. Dual wings: 18mm bamboo plywood 3. Decorative surface: 1.6mm PVC floor leather |
| Doors & Windows |
1. Aluminum alloy windows: 800×900mm ×6 sets 2. Aluminum double door: 840×2035mm ×1 set |
| Electrical System |
1. Circuit breaker: 32A leakage protector, 220V/50Hz 2. Lighting: 30×30 flat panel light, ceiling light 3. Sockets: standard international 3-pin and 5-pin (customizable) 4. Switches: double/single key (customizable) 5. Wiring: main line 6², AC socket 4², normal socket 2.5², lighting 1.5² (standard wires, customizable) |
| Accessories | Includes corner line, skirting, corner protection, waterproof tape, structural adhesive |
| Packing & Loading | 40ft HQ can load 2 sets |

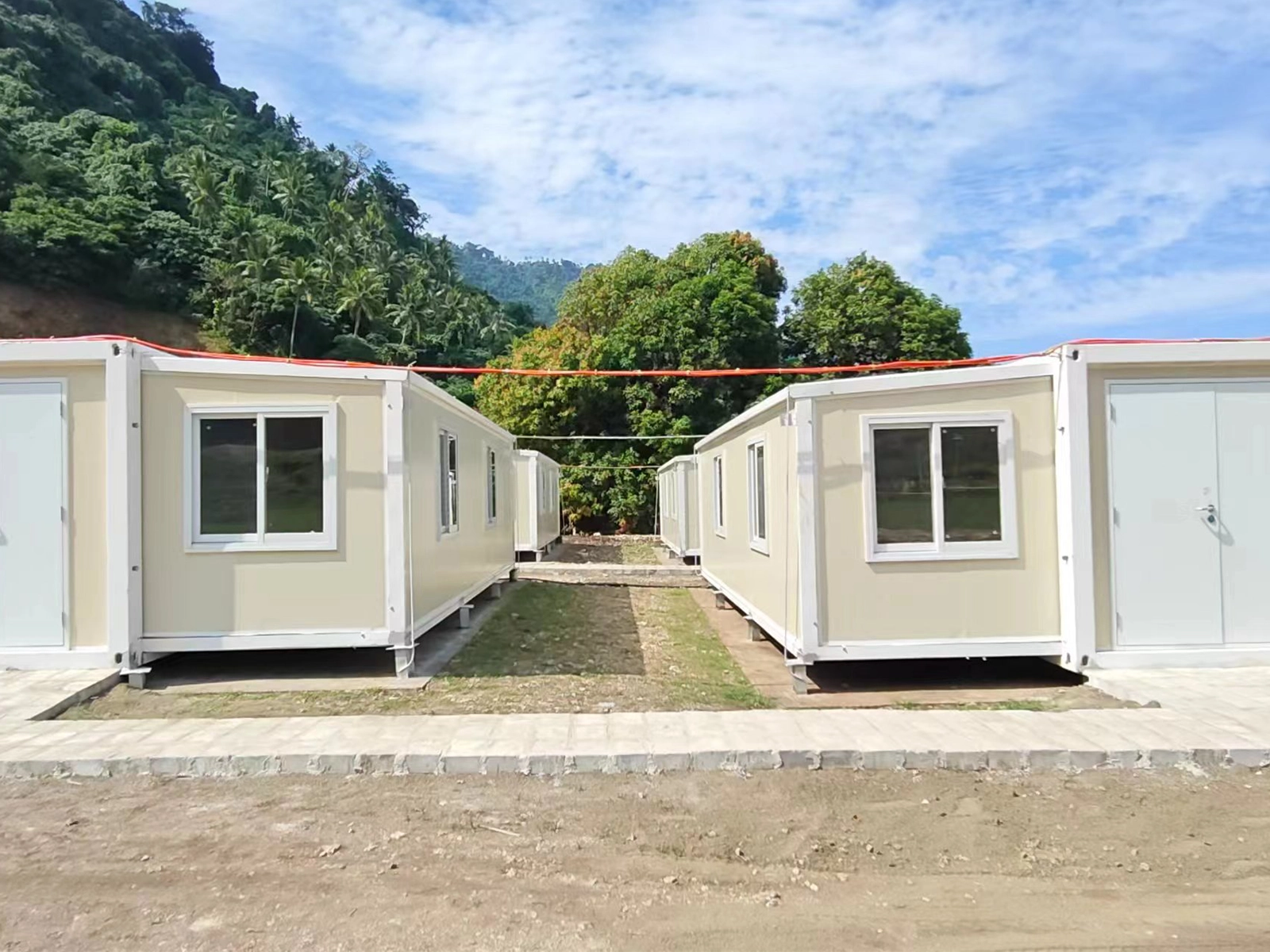

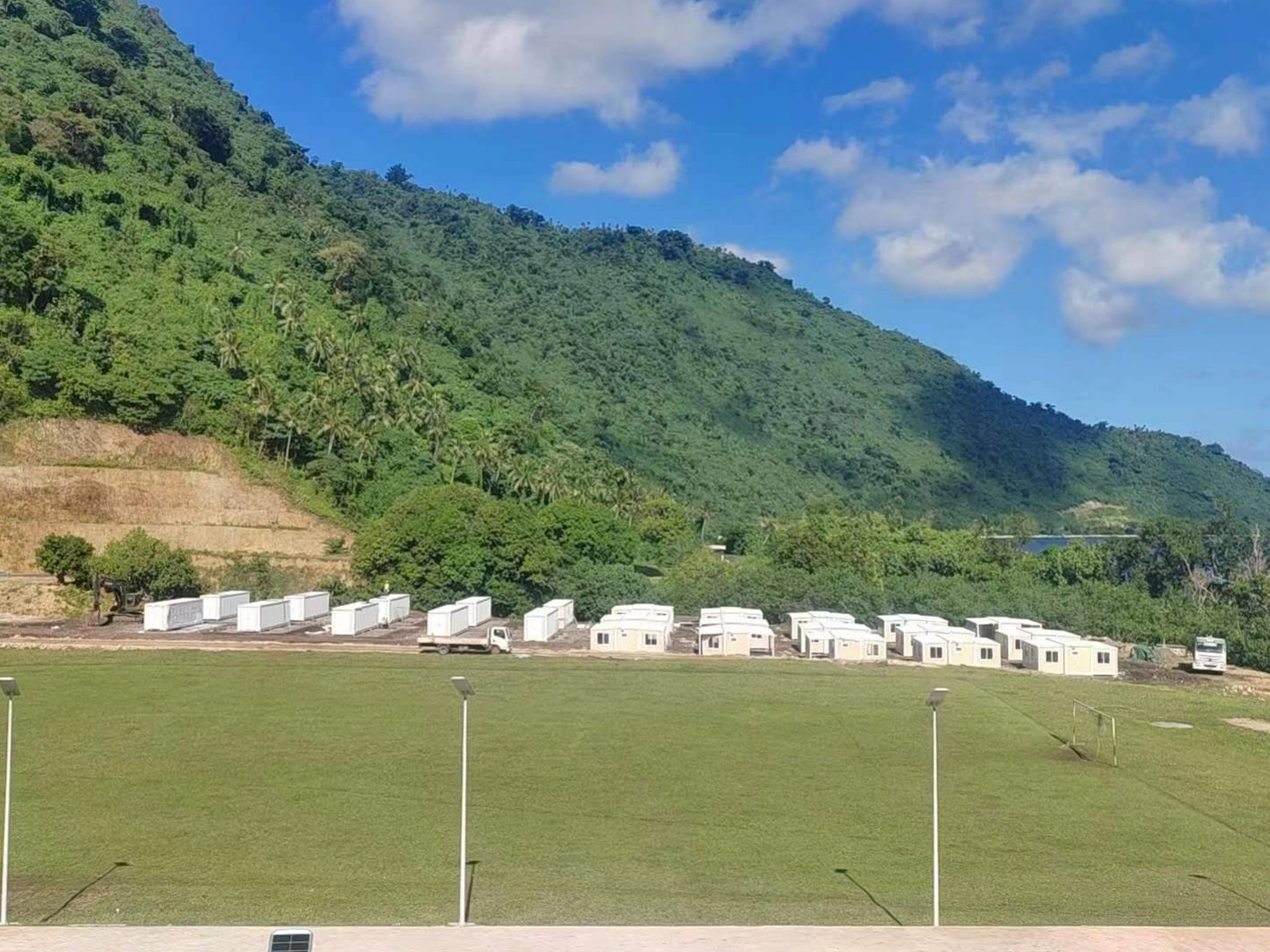

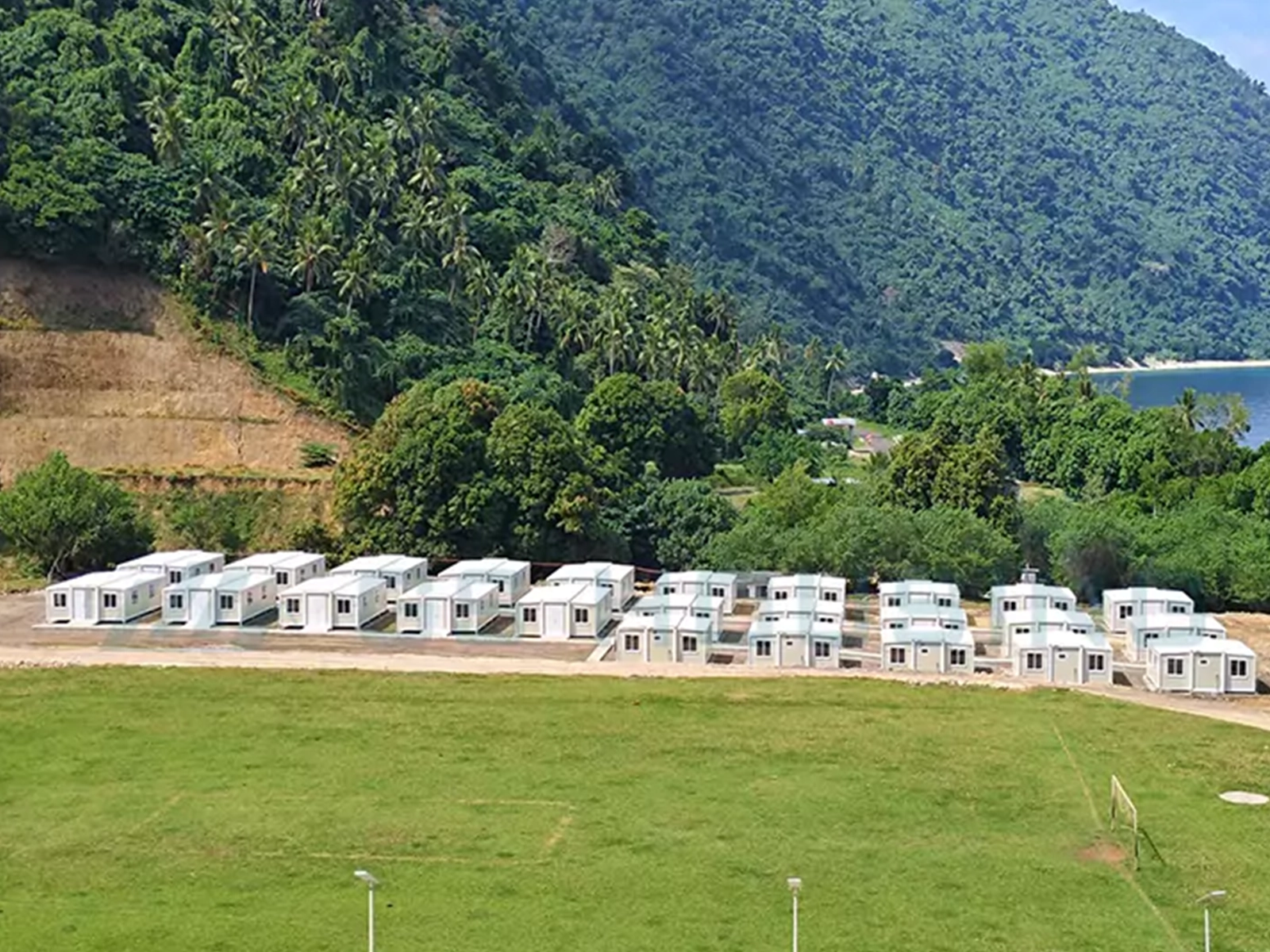

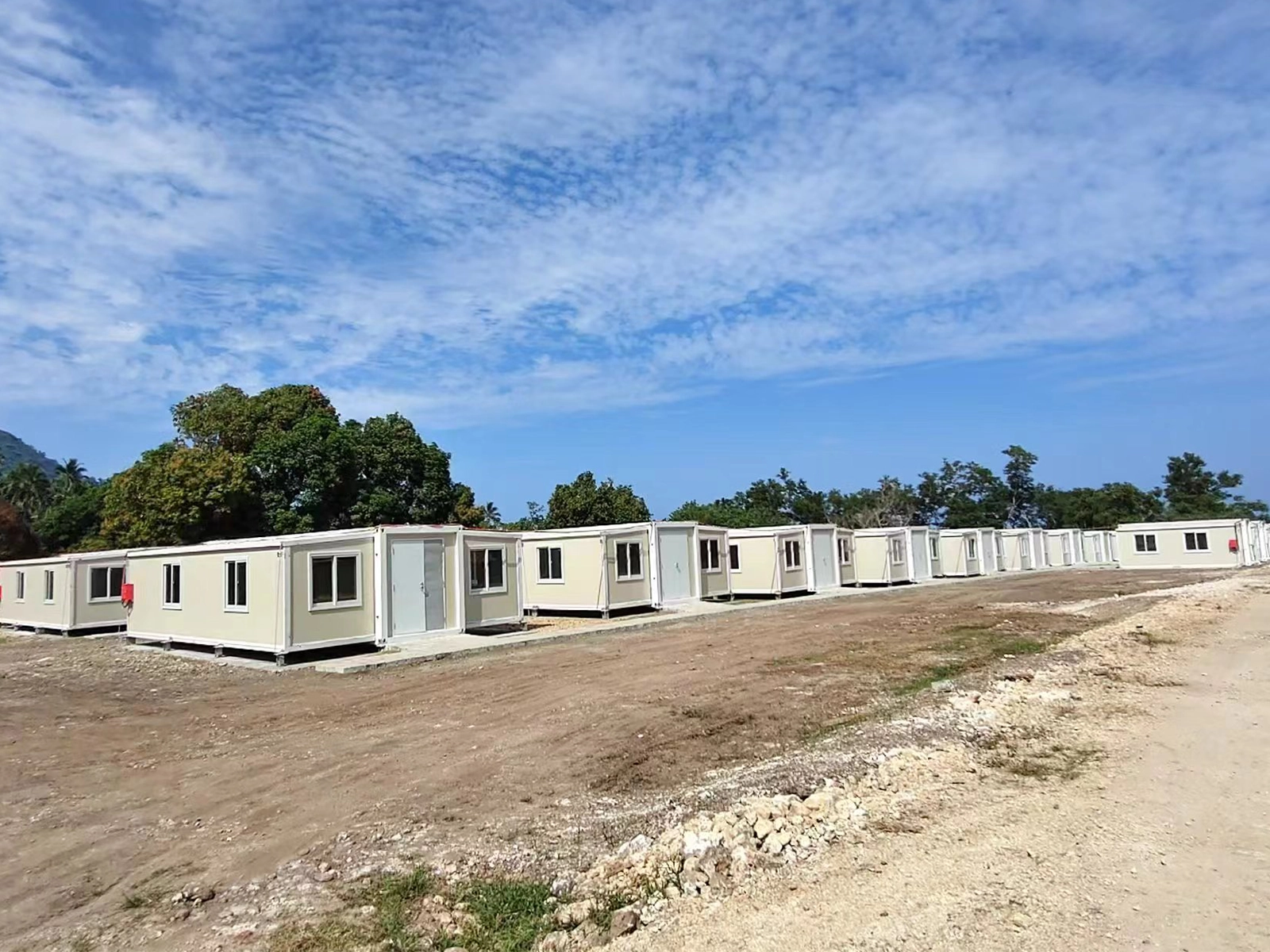

Vanuatu Expandable Container Camp Project
GS Housing delivered a 25-unit expandable container camp in Vanuatu, combining 20ft and 30ft modules to provide functional and comfortable office and accommodation facilities.
