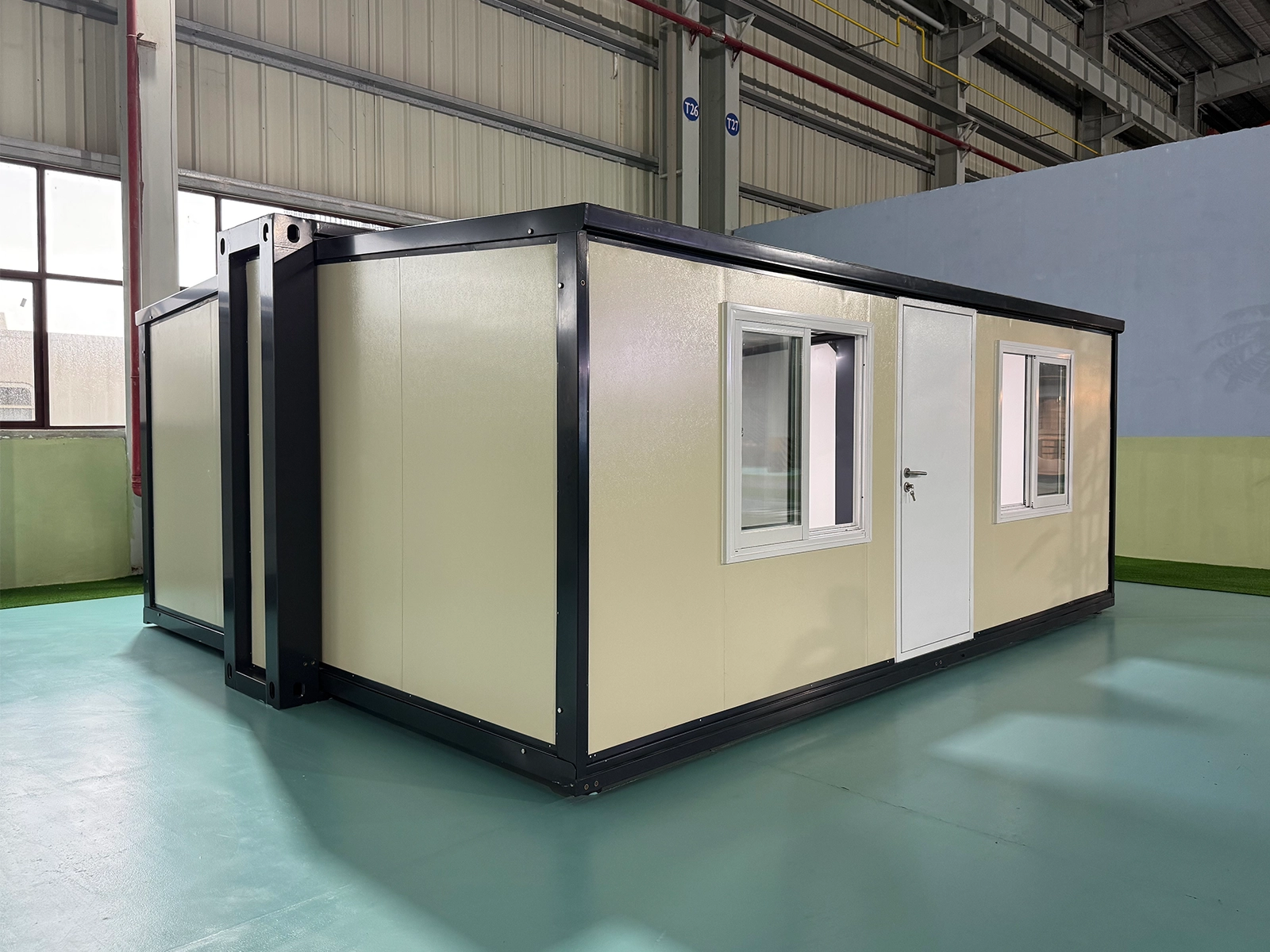

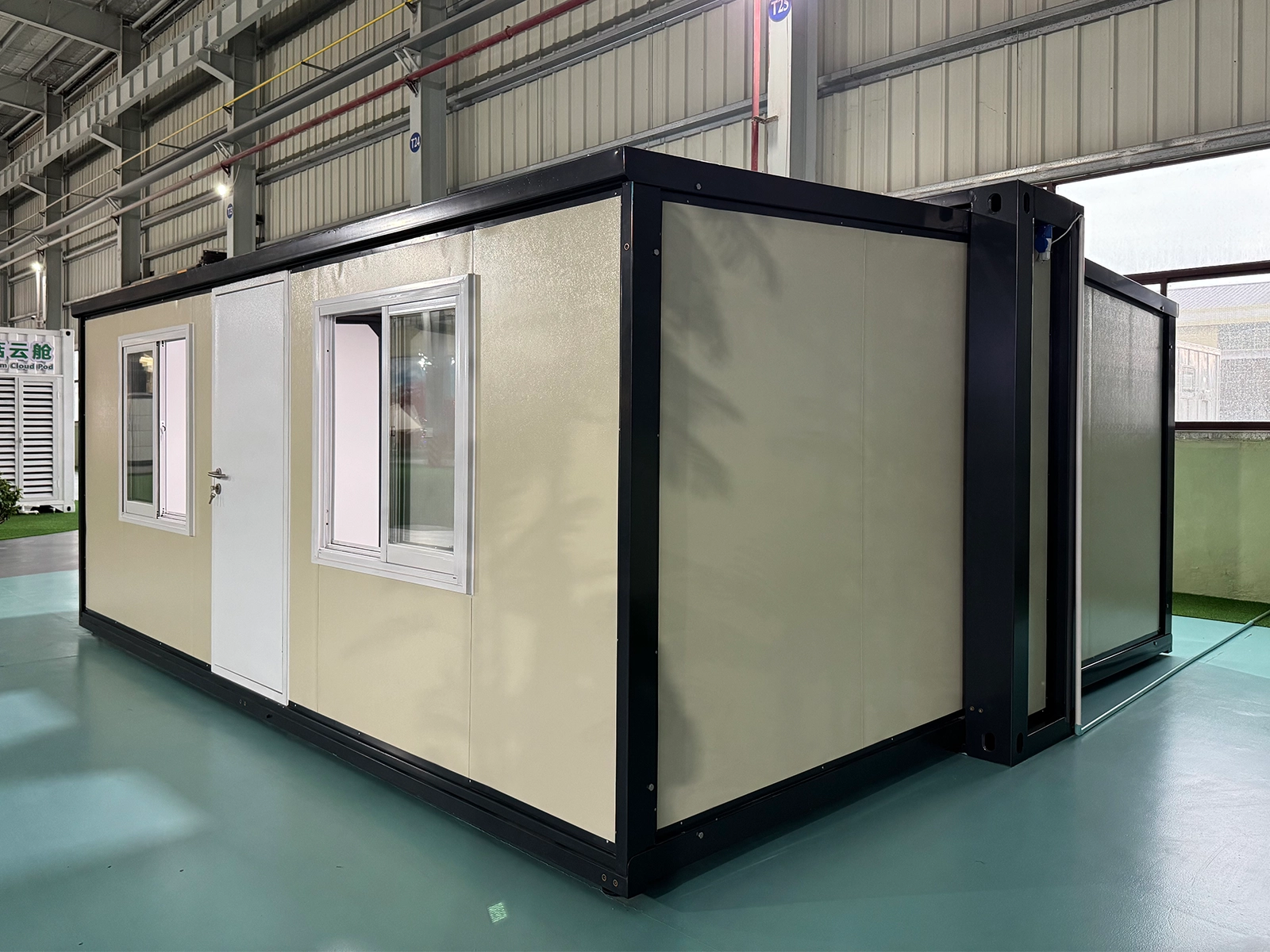

700 Small Dual Wing Expandable Container House -Residential & Commercial Use
Fast Installation | Custom Layout | Factory Direct Price | Global Delivery
The 700 Small Dual Wing Expandable Container House is a smart modular unit with a compact footprint and dual-side expansion. Designed for fast installation and relocation, it offers a modern living solution suitable for short-term housing, offices, or site accommodations, ensuring durability and comfort.
Products & Technology
The 700 Small Dual Wing Expandable Container House is a smart modular housing solution that maximizes space with its dual-wing expansion system. Compact when folded and spacious when deployed, it is designed to deliver both comfort and practicality for diverse residential and commercial applications.
Flexible & Durable 20ft Expandable Container House
Key Features:
Dual-Wing Expandable Design – Expands quickly on both sides, creating a functional layout suitable for living, office, or temporary housing.
Durable Structure – Built with reinforced steel frame and premium insulation panels to ensure strength, weather resistance, and long-term use.
Compact & Portable – Small footprint when folded for convenient transport, storage, and site relocation.

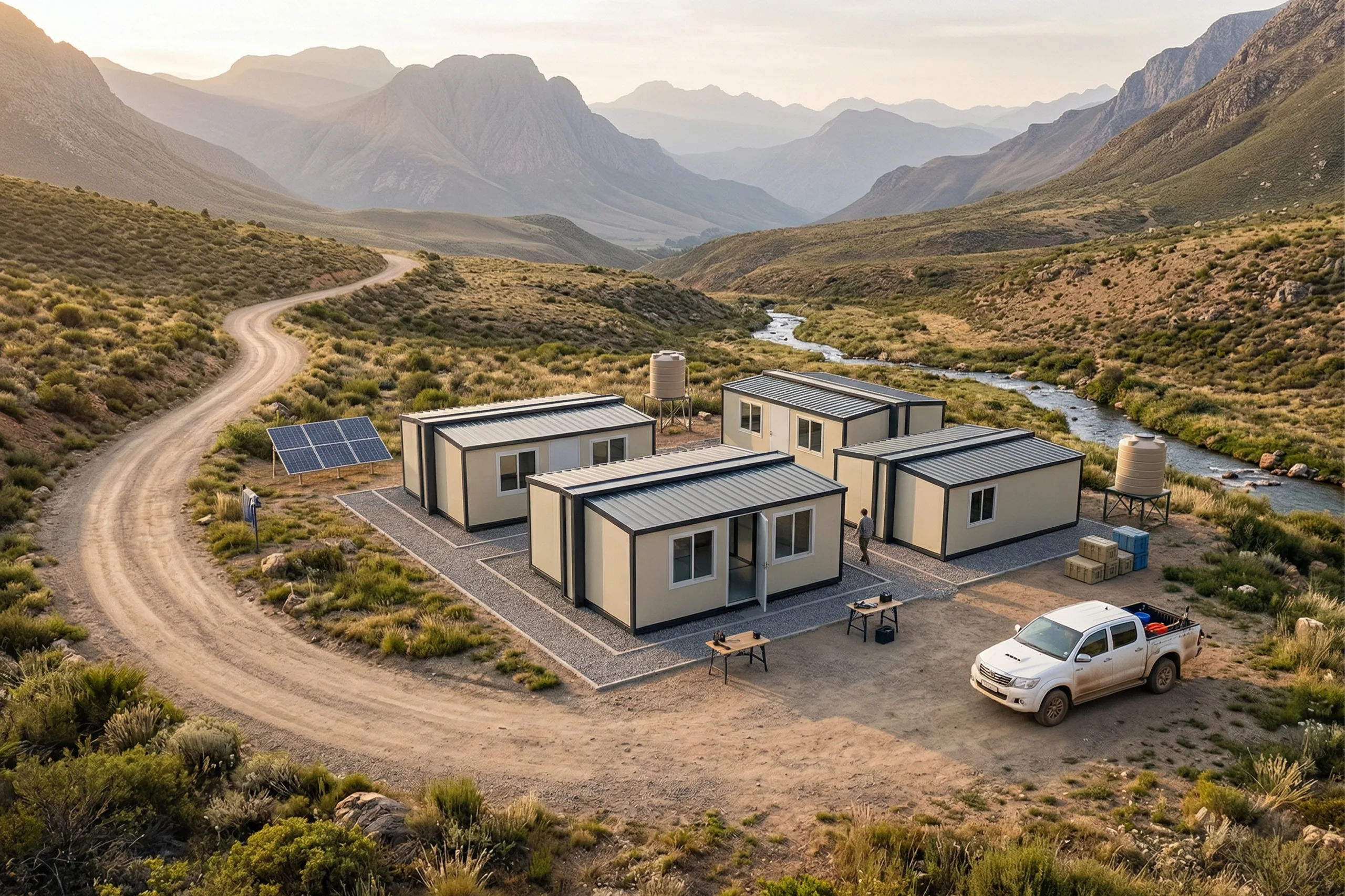

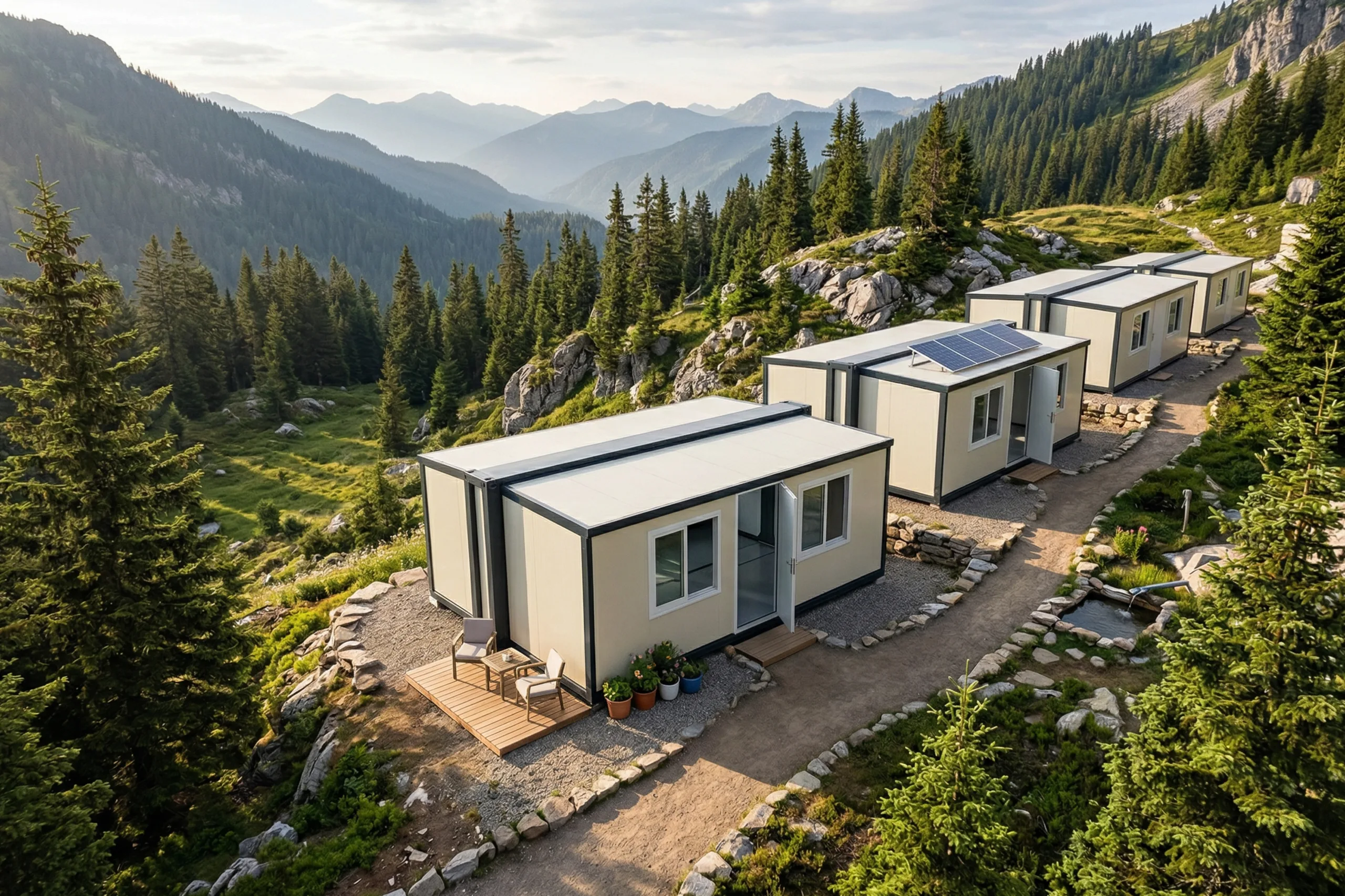

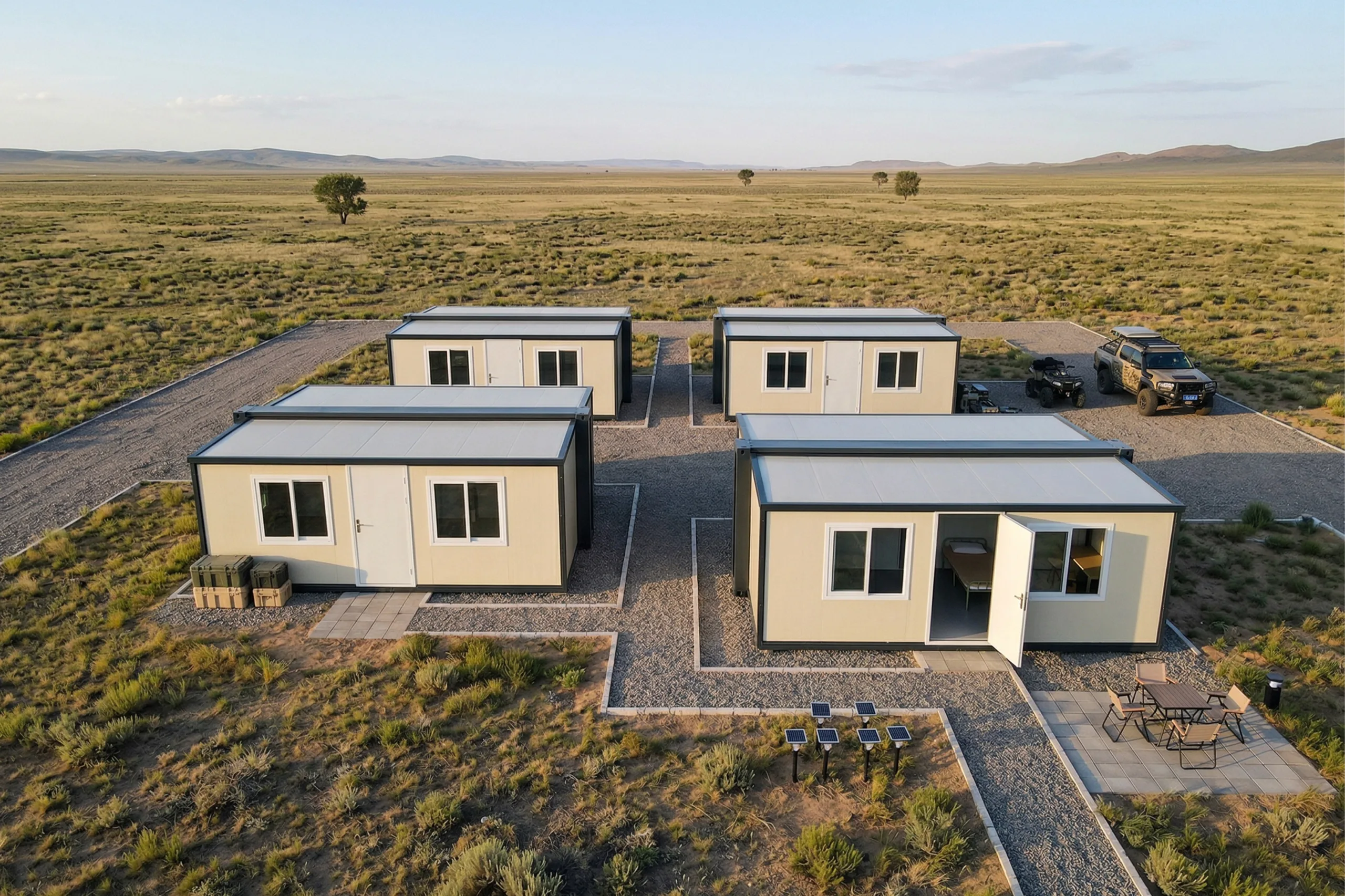

Flexible Applications – Perfect as a modular home, site accommodation, tourism cabin, or emergency housing unit.
Energy-Smart System – Supports up to 12KW power capacity, providing efficient energy supply for residential and commercial needs.
Applications
Large Construction Camps – Quickly deployed worker dormitories and administrative offices for large engineering projects.

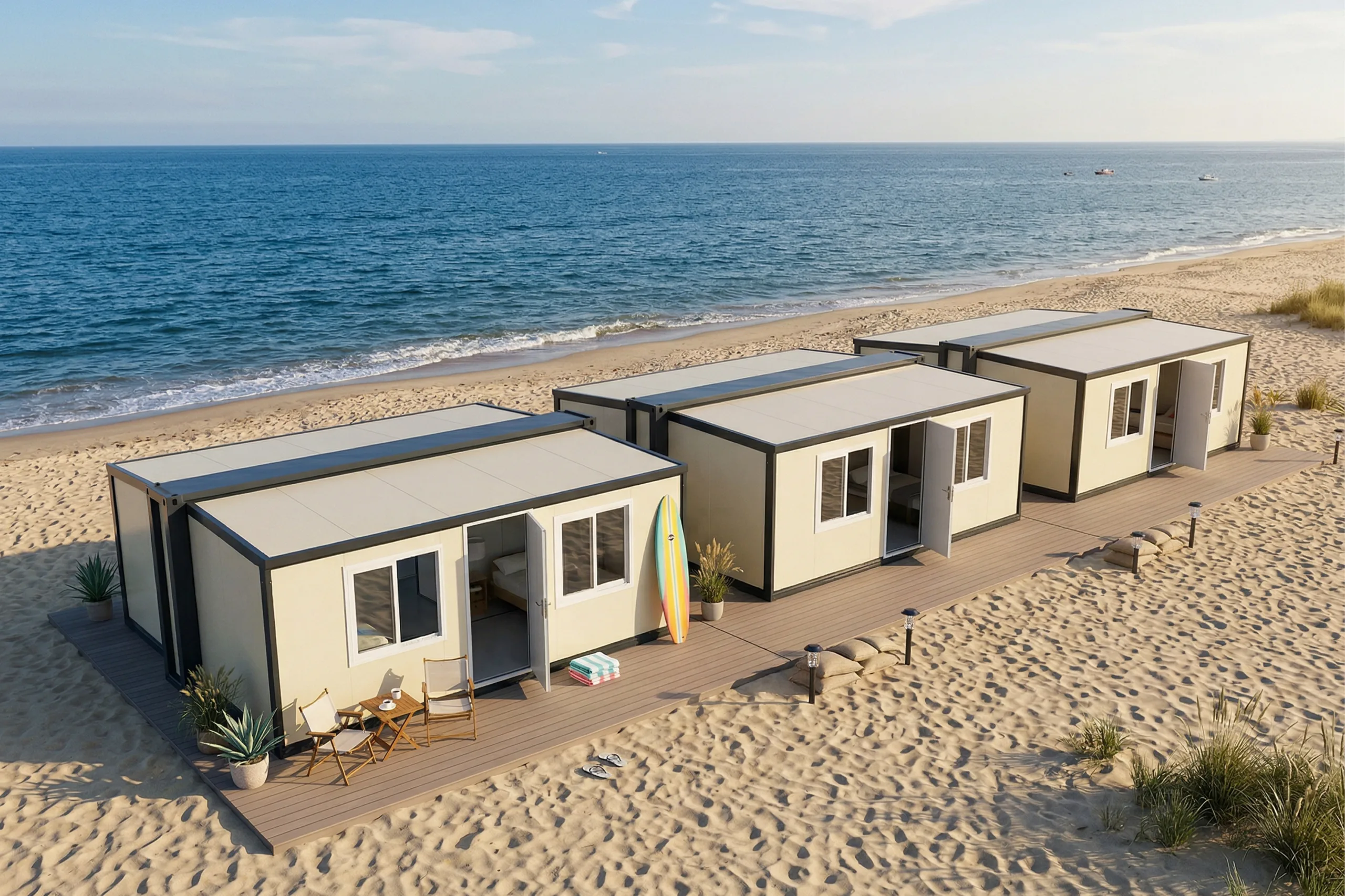

Resort Hotels & Glamping Villas – Spacious modular units used for tourism accommodations and resort developments.
Modular Offices & Headquarters – Suitable for project headquarters, meeting rooms, and operational offices.
Commercial Buildings – Can be used as restaurants, retail stores, exhibition halls, or community facilities.
Permanent Modular Homes – Comfortable long-term residential houses with spacious layouts.
Luxury Vacation Houses – Ideal for large holiday homes in scenic areas.
Multi-Room Family Houses – Provides enough space for larger families with multiple living areas.

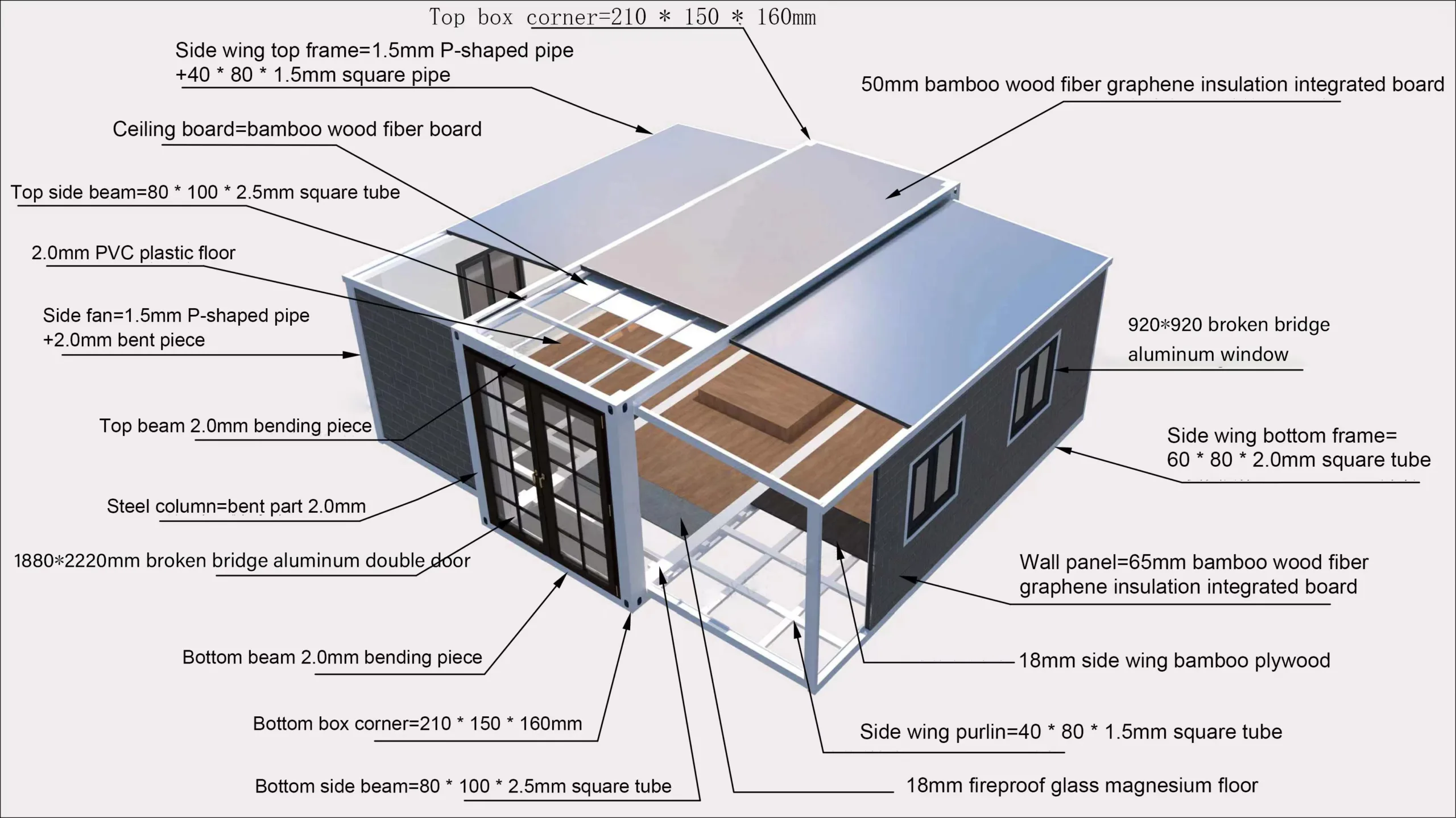

Expandable Container House Structural System
Expandable container houses combine modular steel structures with a double-wing expansion system to create flexible and spacious living environments. After unfolding, the interior area nearly doubles while maintaining a compact size for transportation. Integrated insulation panels, durable flooring, aluminum doors and windows, and optional solar power systems provide energy-efficient and comfortable modular housing solutions for emergency housing, site offices, and remote accommodation.
Certifications: ASTM, SASO, CE, EAC, ISO, SGS
Installation step of the expandable container house
Expandable Container House Specifications
| Item | Specification |
|---|---|
| Model | 700 Small Dual Wing Expandable Container House |
| Product Type | 20ft 700 Small Dual-Wing Expandable Container House |
| Expanded Size | L5900 × W4800 × H2480 mm |
| Internal Size | L5460 × W4640 × H2240 mm |
| Folded Size | L5900 × W700 × H2480 mm |
| Floor Area | 27.5㎡ |

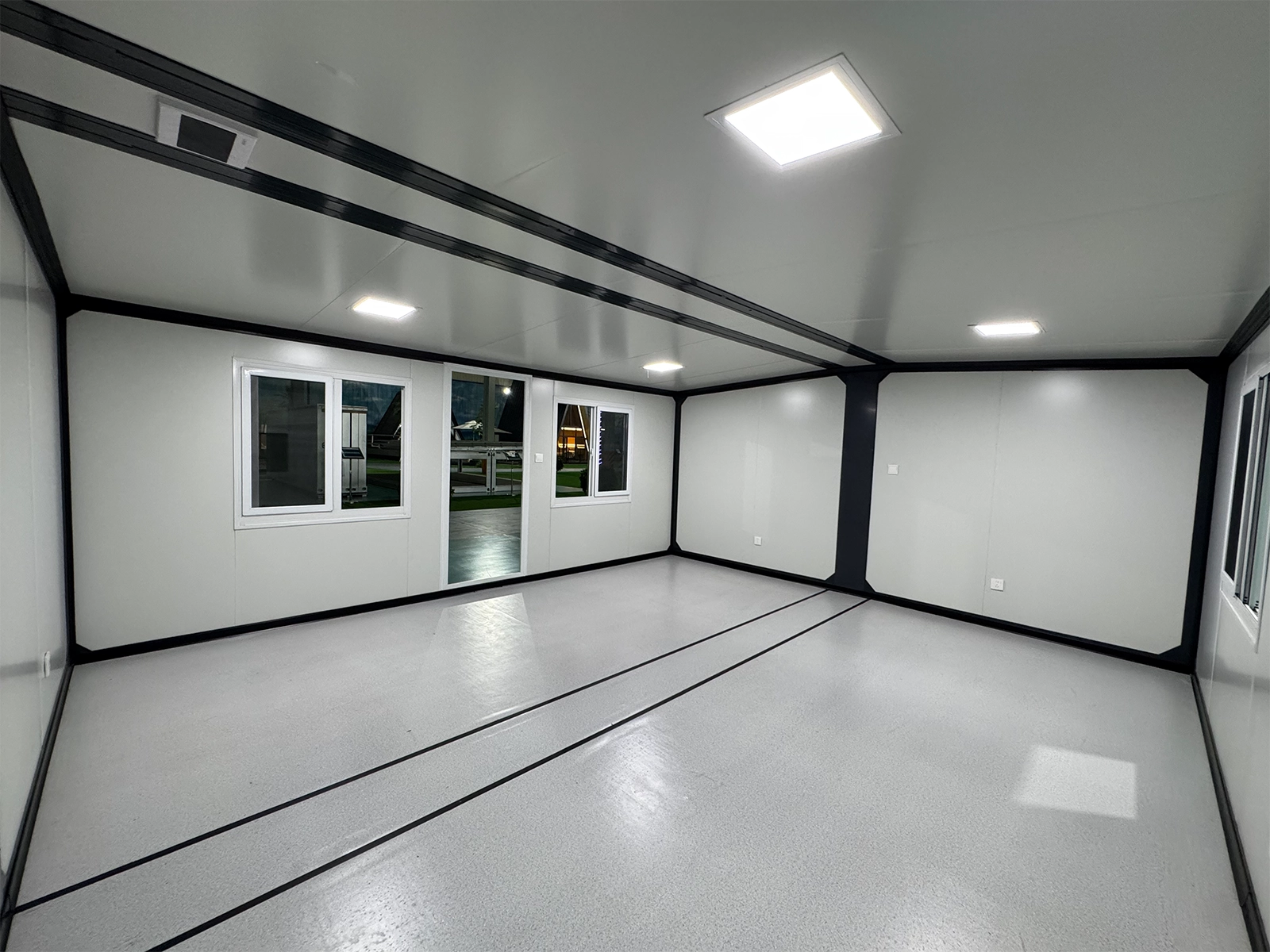

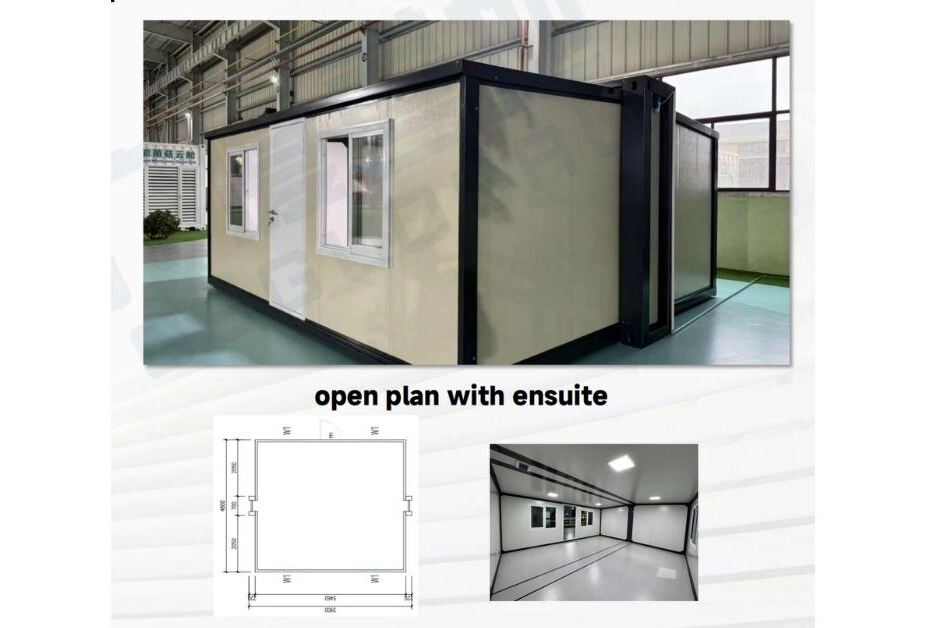

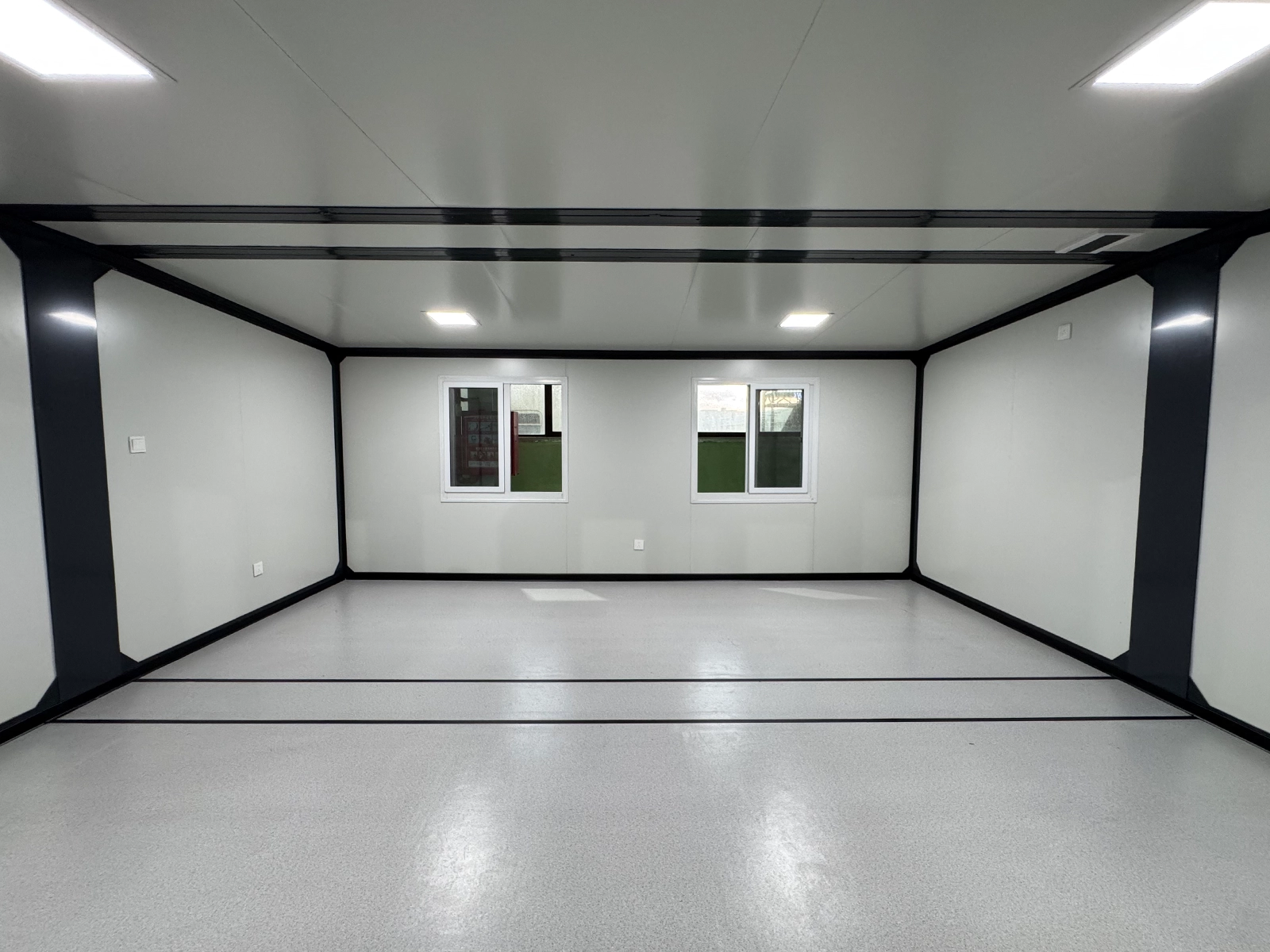

| Layout | One living room |
| Occupancy | 2–4 persons |
| Power Load | 12KW |
| Net Weight | 2.1 tons |

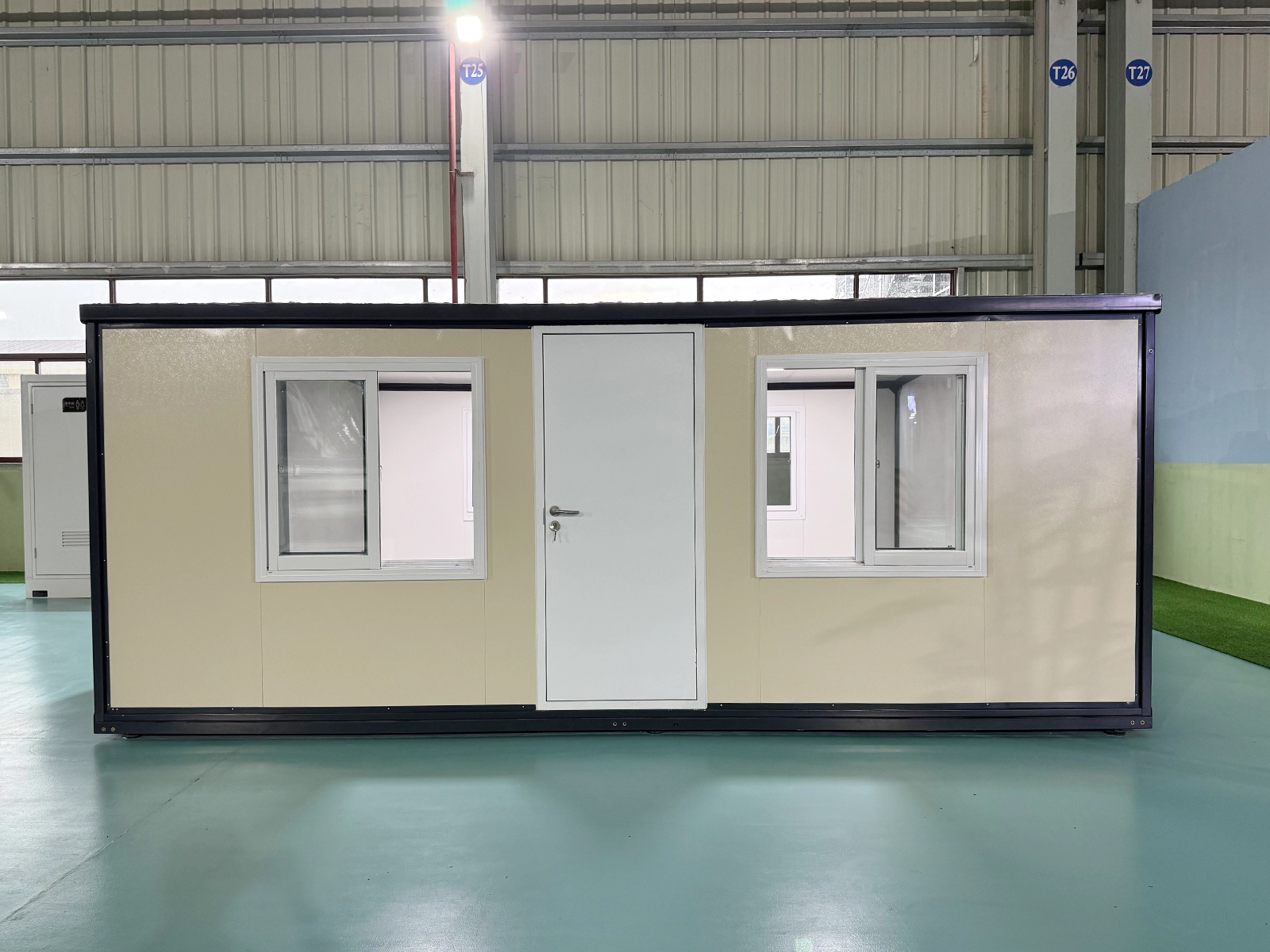

| Exterior Image | Image for reference only |
| Structure – Main Frame | Fully galvanized national standard steel frame |
| Top Side Beam | 80 × 100 × 2.5 mm galvanized square tube |
| Top End Beam | Galvanized bent steel, 2.5 mm |
| Top Longitudinal Secondary Beam | 30 × 30 × 1.3 mm galvanized square tube |
| Top Horizontal Secondary Beam | 40 × 60 × 1.5 mm galvanized square tube |
| Bottom Side Beam | 80 × 100 × 2.5 mm galvanized square tube |
| Bottom End Beam | Galvanized bent steel, 2.5 mm thick |
| Bottom Longitudinal Secondary Beam | 40 × 80 × 1.5 mm galvanized square tube |
| Bottom Horizontal Secondary Beam | 40 × 80 × 1.5 mm galvanized square tube |
| 5mm Galvanized Lifting Head | L210 × W150 × H160 mm |
| Steel Column | Galvanized bent steel, 2.5 mm thick |
| Side Wing Frame | Fully galvanized national standard steel frame |
| Top Frame | P40 × 80 × 1.5 mm P-shape tube |
| Side Wing Horizontal Tube | 40 × 80 × 1.5 mm galvanized square tube |
| Bottom Frame | 60 × 80 × 2.0 mm galvanized square tube |
| Folding Hinge | 130 mm galvanized hinge |
| Frame Protective Coating | Electrostatic spray / powder coating + anti-corrosion layer |
| Top – External Roof Panel | 950-type, 50 mm thick double-sided 0.3 mm rock wool steel composite + corrugated sheet 0.45 mm |
| Dual Wing Top Panel | 950-type, 50 mm thick double-sided 0.3 mm rock wool steel composite + corrugated sheet 0.45 mm |
| Internal Ceiling Panel | 950-type, 50 mm thick double-sided 0.3 mm rock wool steel composite |
Our Projects in Use

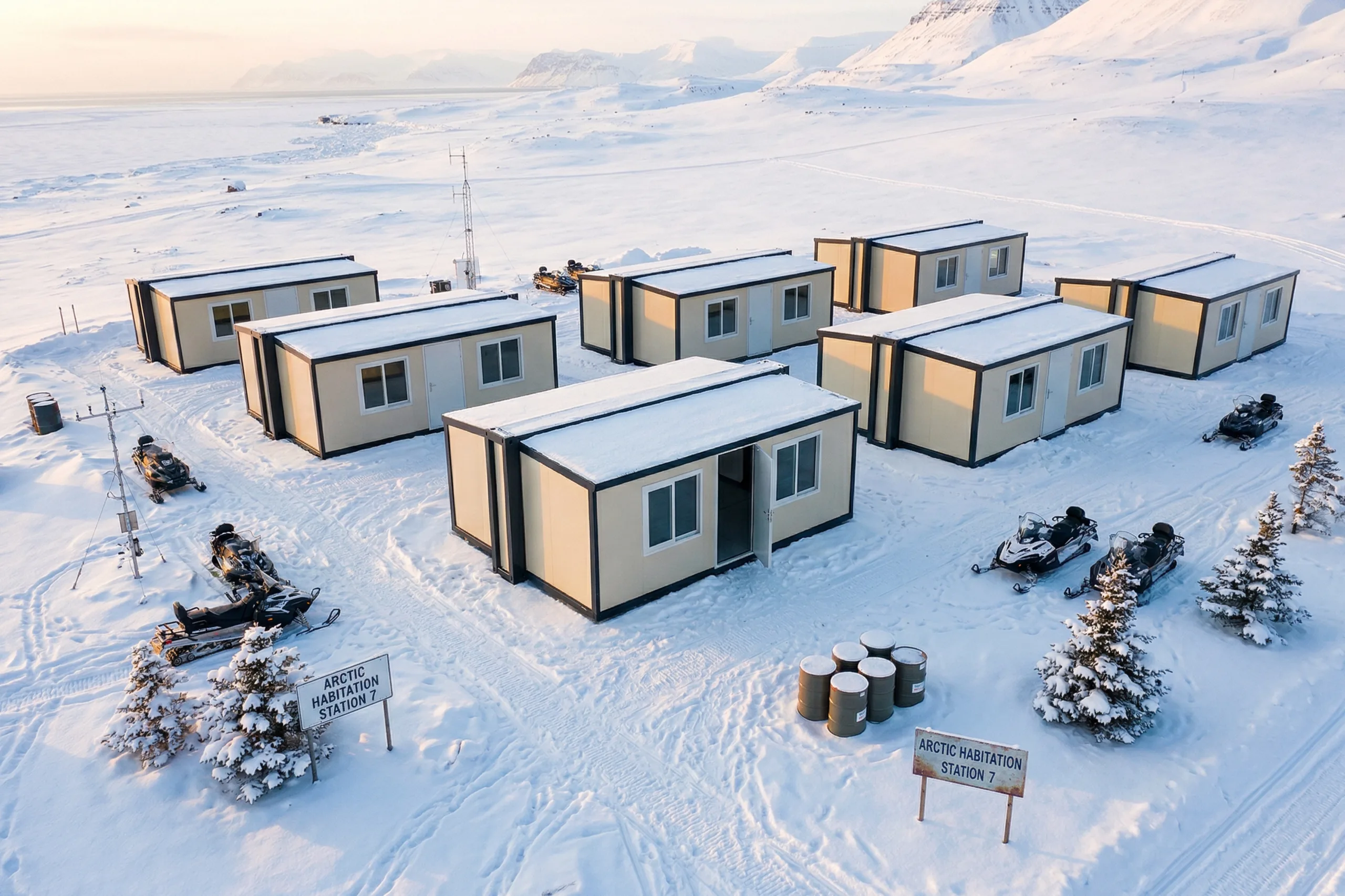

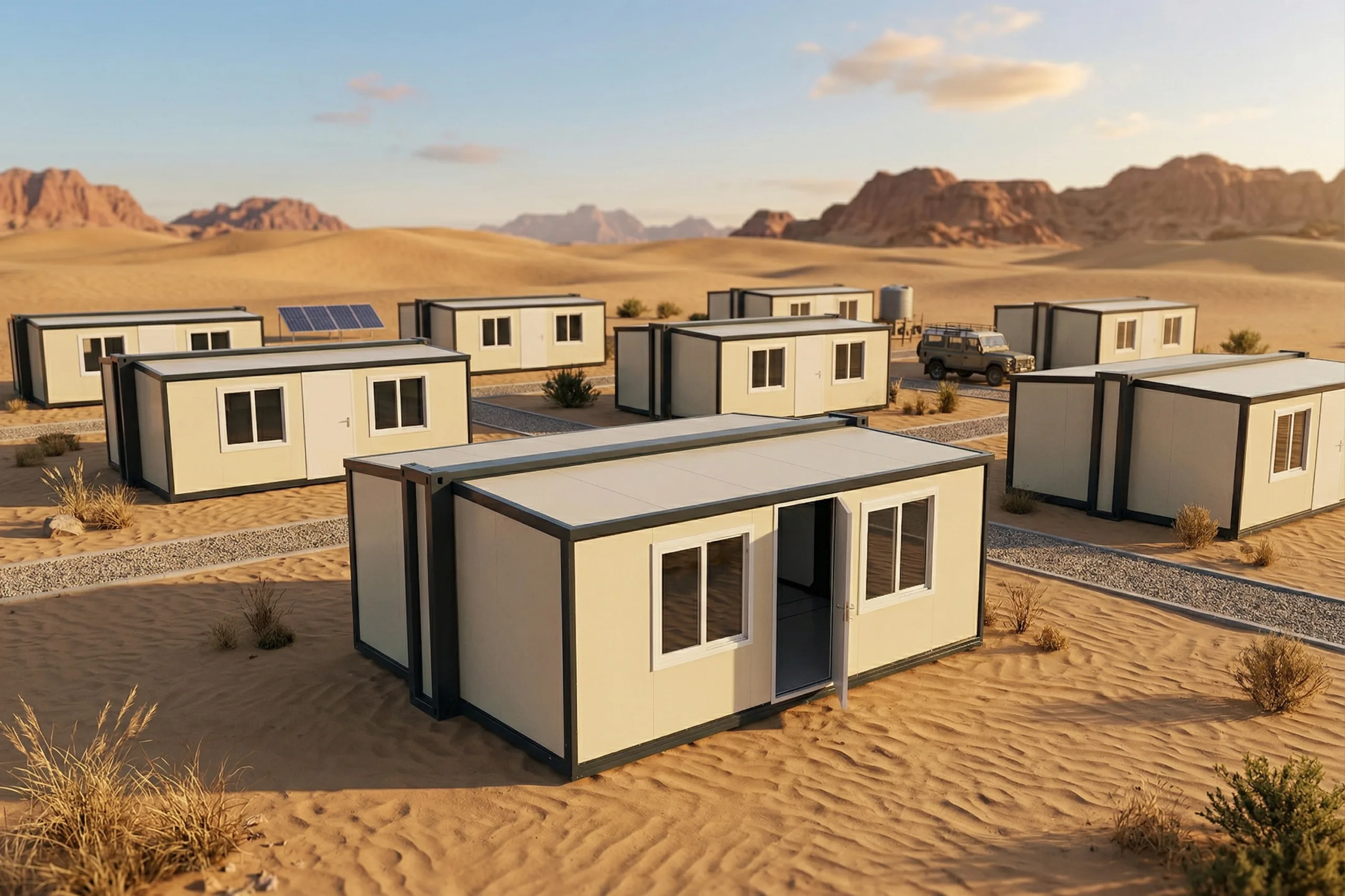

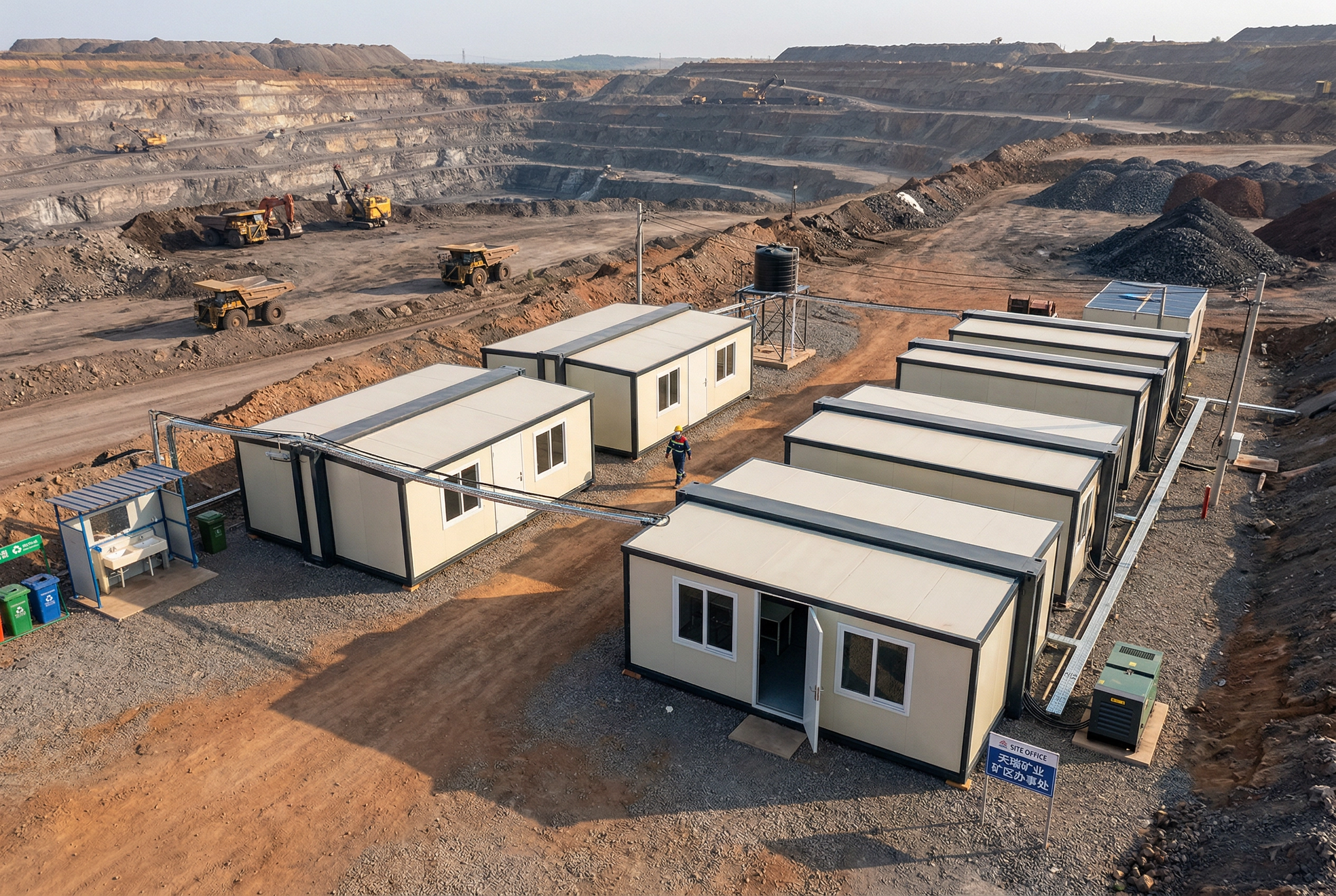

See how our 20ft Expandable Container Houses have been deployed worldwide for residential, commercial, and emergency purposes.
